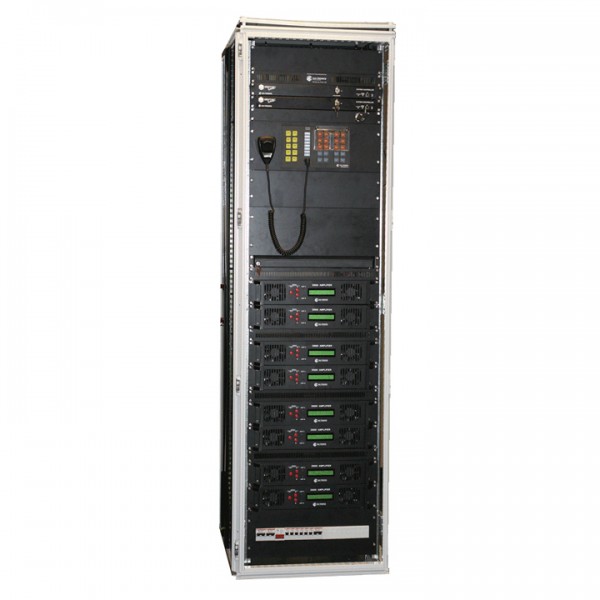

- Tên sản phẩm : Hệ thống Truyền thanh thông báo PAGA Elemec-3
- Mô tả: Public Address system The Elemec3 is a digitally controlled Public Address and General Alarm (PA/GA) system. Designed principally for life critical installations in the Oil and Gas market, it is also suitable for many industrial communications requirements. The equipment is specifically and fundamentally designed for failsafe operation, with extensive system and fault status monitoring for maximum availability at all times. In addition to general paging and emergency broadcasts, alarms can be automatically initiated, e.g. from fire and gas alarm and emergency shut down systems. Alarm tones or pre-recorded digital voice evacuation messages can be broadcast. For ease of installation...
- Chi tiết Sản Phẩm
Digitally Controlled PA and General Alarm system PA/GA
- Class D intelligent power amplifiers Dual 300W (D600i), Single 550W (D550i) or Single 300W (D300i)
- Up to 35.2 kW (64 amplifiers) of audio power
- Up to 64 programmable audio zones
- Fully duplicated, redundant or single configuration
- Compliant to UKOOA, PFEER, IMO, ABS, SOLAS, DNV, CCS, NORSOK guidelines
- Multiple hot standby power amplifiers
- Modular design for easy maintenance
- Up to 16 fully monitored & feature rich programmable access panels
- Message storage and replay up to 25MB
- System status and fault monitoring via Portal remote monitoring software
- Intrinsically Safe ATEX/IEC Ex access panels to Group IIB
- Two audio paths for simultaneous broadcasting requirements, in accordance with IEC 60849
- Background Music (BGM) Panel option
- PABX telephone access
- Page/Party® access
- Engineers test panel
- Optional fibre optic links
- Auto alarm inhibit via key switch
- Beacon cable monitoring
- Ultrasonic loudspeaker network monitoring
- 256 inputs / outputs
- CE compliant
TLKT: http://gai-tronics.org/wp-content/uploads/2015/01/B209_Elemec3.pdf
08.06.2015
